KEY FEATURES
& Ideal for 1/10 on road applications
& incredible efficiency and low power consumption
& Aluminum case for good heat dissipation
& NMB dual main bearings
& Supporting SR, SSR, SFR, SUR, SXR multiple ultra high speed modes
& 25T output shaft
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case |
Dimension (mm) |
Weight (g) | |||
|
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in | ||||||
| BH615S | 0.062 | 10.0/138.8 | 0.052 | 13.0/180.5 | 0.045 | 15.0/208.3 | Titanium & Alu | Brushless | Semi-metal | 41.0*20.0*26.4 | 43.0 |
Application :
1/10 Electric/ Car
1/10 Nitro/ Car
Off-road
On-road
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.062 sec/60 degrees at no load
operating speed (7.4v): 0.052 sec/60 degrees at no load
operating speed (8.4v): 0.045 sec/60 degrees at no load
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive

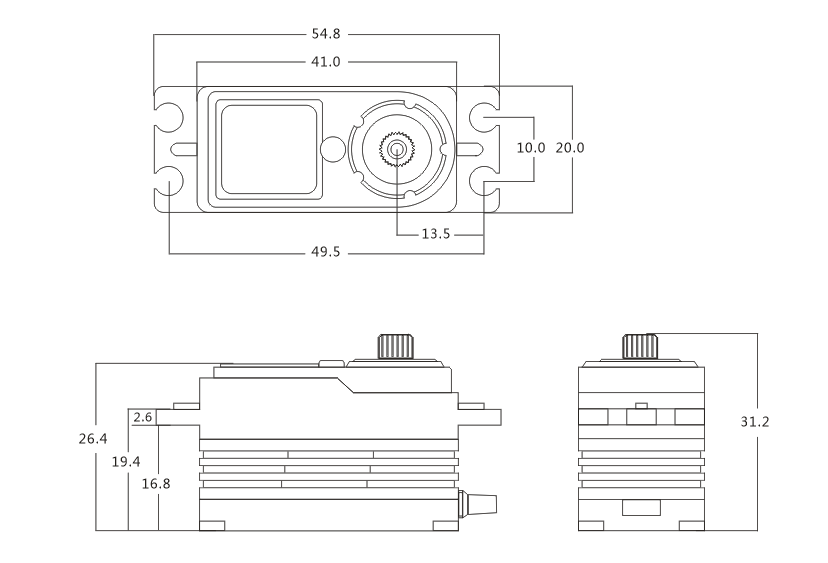

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 43.0g (1.52 oz)
connector wire length: jr 180 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
