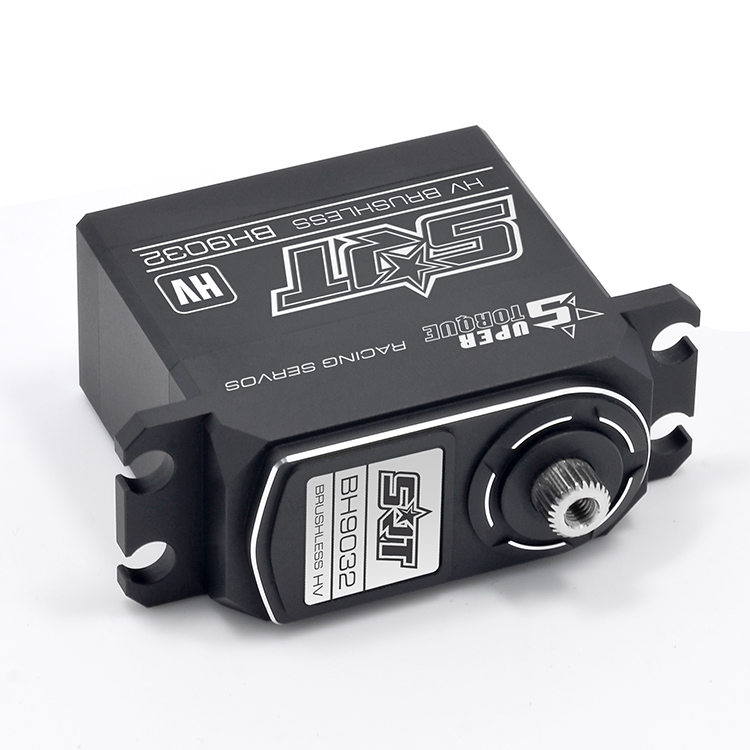

SRT BH9032 1/8 Car HV Brushless Servo

SRP:$

< Roll over image to zoom in

KEY FEATURES

& Ideal for 1/8 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
& Superior Holding Torque
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo

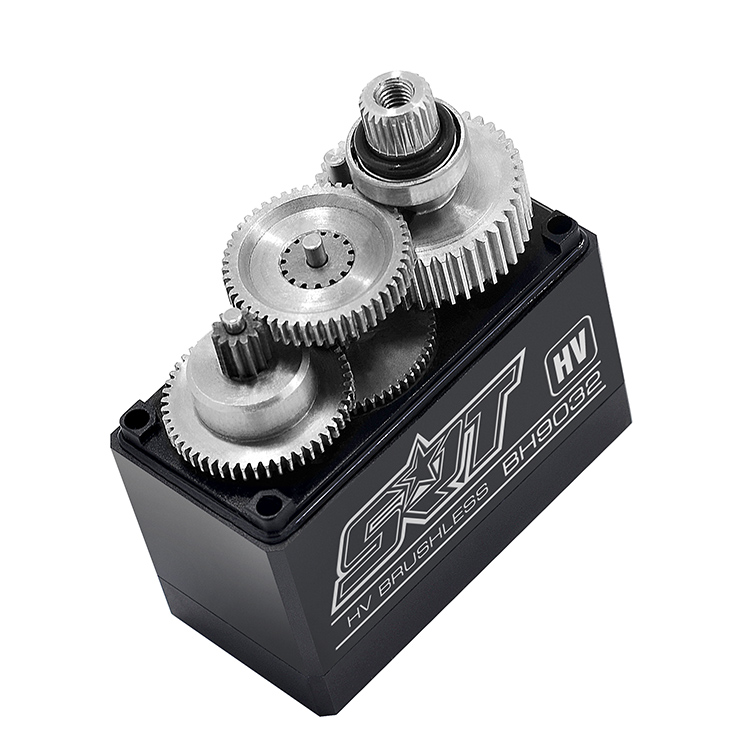

& Titanium & Steel gears for precision and durability
& CNC Machined aluminum case for exceptional cooling
& NMB dual main bearings
& 25T output shaft
& HD 4096 Resolution
& 2 μsec Dead Band
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
BH9032 0.14 27.0/374.9 0.12 30.0/416.6 0.11 32.0/444.4 Titanium & Steel Brushless  CNC 40.0*20.0*38.0 80.0

Application :
1/8 1/5 Electric/ Car         1/8 1/5  Nitro/ Car                1/8 2 4WD / Off-road
 1/8 Off-road                   1/8 / Off-road                      1/8 Off-road
 Air plane




PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.14 sec/60 degrees at no load
operating speed (7.4v): 0.12 sec/60 degrees at no load
operating speed (8.4v): 0.11 sec/60 degrees at no load
stall torque (6.0v): 27.0kg.cm (374.9 oz/in)
stall torque (7.4v): 30.0kg.cm (416.6 oz/in)
stall torque (8.4v): 32.0kg.cm (444.4 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 80.0g (2.82 oz)
connector wire length: jr 250 mm


SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.
