SRP:$
< Roll over image to zoom in

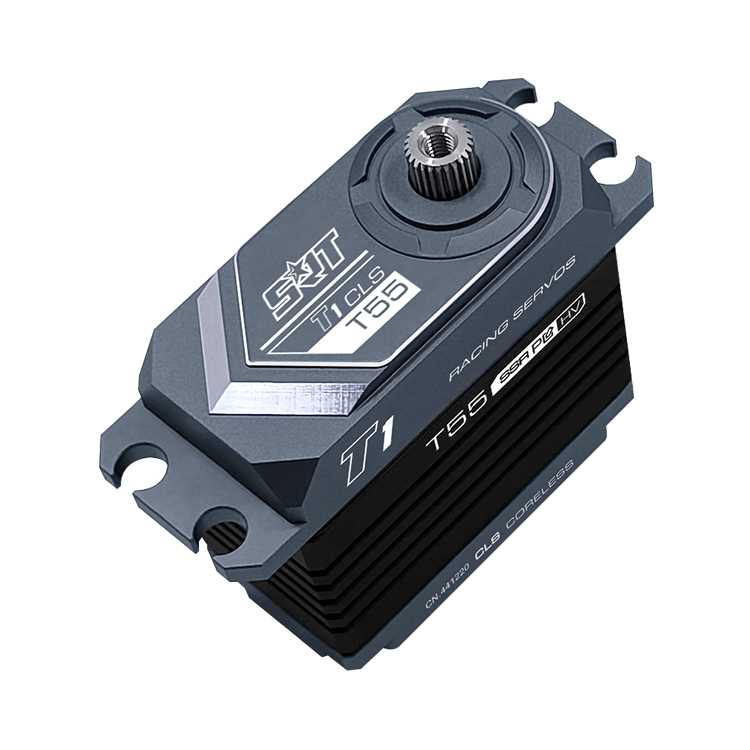

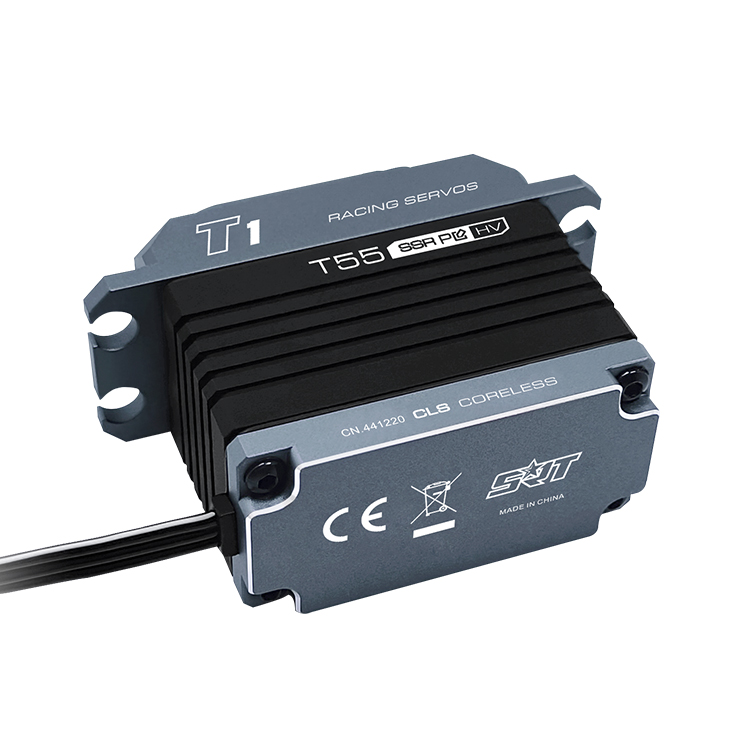

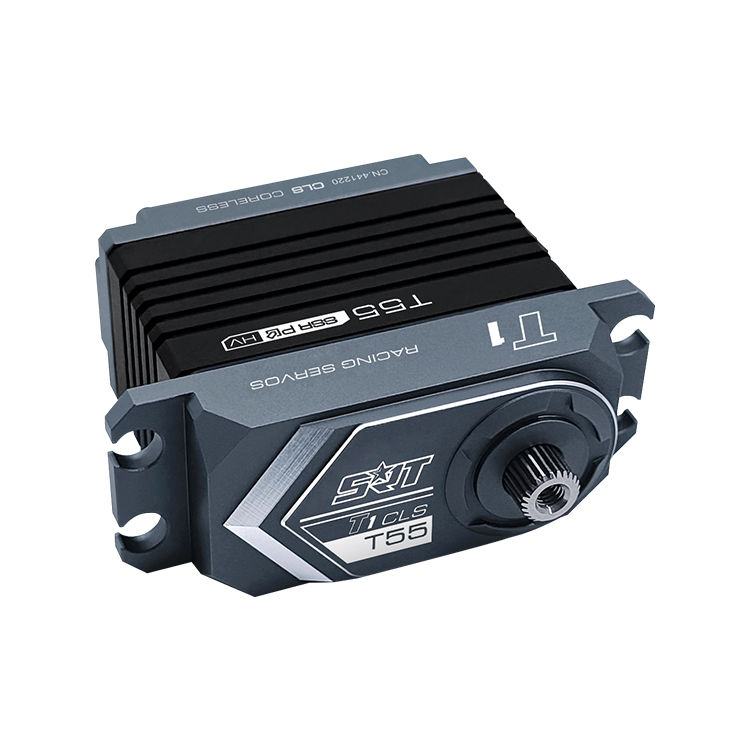

KEY FEATURES
& Superior Holding Torque
& Incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& Programmable High torque Coreless servo
& SSR mode compatible
& 25T output shaft
& 2 μsec Dead Band
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) | Weight (g) | |||
| Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | ||||||
| T55 | 0.22 | 43.0/597.2 | 0.20 | 50.0/694.4 | 0.19 | 55.0/763.8 | Steel & Aluminum | Coreless | all-metal | 40.7*20.5*39.0 | 81.0 |
Application :
Air plane
1/10 Crawler
1/8 Crawler
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Steel & Aluminum
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.22 sec/60 degrees at no load
operating speed (7.4v): 0.20 sec/60 degrees at no load
operating speed (8.4v): 0.19 sec/60 degrees at no load
stall torque (6.0v): 43.0kg.cm (597.2 oz/in)
stall torque (7.4v): 50.0kg.cm (694.4 oz/in)
stall torque (8.4v): 55.0kg.cm (763.8 oz/in)
potentiometer drive: direct drive
dimensions: 40.7 x 20.5 x 39.0 mm /1.60 x 0.81 x 1.54 in
weight: 81.0g (2.86 oz)
connector wire length: jr 300 mm
SRT SERVO OVERVIEW
All SRT servos are available to be customized by OEM service if you need, please feel free to contact us.
