KEY FEATURES
& incredible efficiency and low power consumption
& Aluminum case for good heat dissipation
& NMB dual main bearings
& 25T output shaft
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) | Weight (g) | |||
| Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | ||||||
| BH6022 | 0.088 | 17.0/236.1 | 0.068 | 19.0/263.9 | 0.06 | 22.0/305.5 | Titanium & Alu | Brushless | Semi-metal | 41.3*20.5*38.3 | 69.0 |
Application :
1/10 Electric Buggy
1/8 Electric GP
1/10 Nitro Touring 1/8 Nitro GP>
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.088 sec/60 degrees at no load
operating speed (7.4v): 0.068 sec/60 degrees at no load
operating speed (8.4v): 0.06 sec/60 degrees at no load
stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
stall torque (7.4v): 19.0kg.cm (263.9 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive

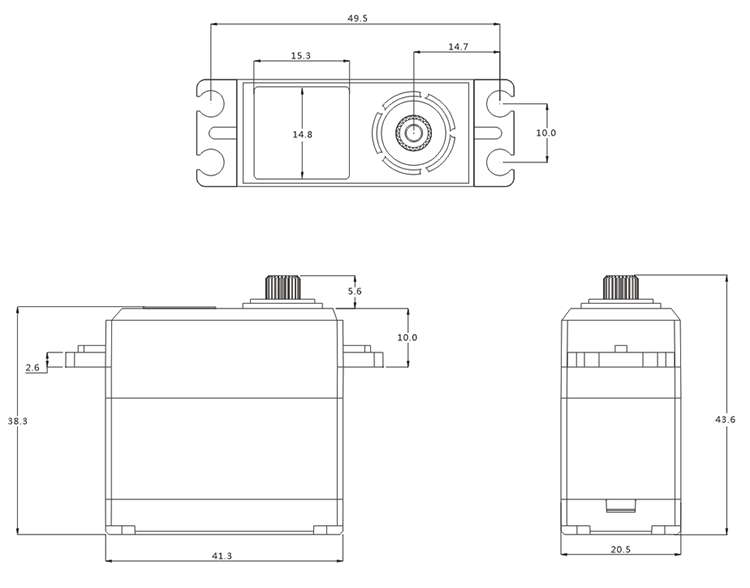

dimensions: 41.3x20.5x38.3 mm /1.63x0.80x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm
SRT SERVO OVERVIEW
All SRT servos are available to be customized by OEM service if you need, please feel free to contact us.
