SRP:$
< Roll over image to zoom in
KEY FEATURES
& Ideal for 1/5 and 1/8 off road scale applications, as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
& 2 μsec Dead Band
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) | Weight (g) | |||
| Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | ||||||
| CH635S | 0.16 | 30.0/416.6 | 0.15 | 32.0/444.4 | 0.14 | 35.0/486.1 | Titanium & Steel | Coreless | Semi-metal | 41.3*20.5*38.3 | 69.0 |
Application :
1/5 Electric/ Car
1/5 Nitro/ Car
1/5 Off-road
1/5 On-road
Air plane
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless

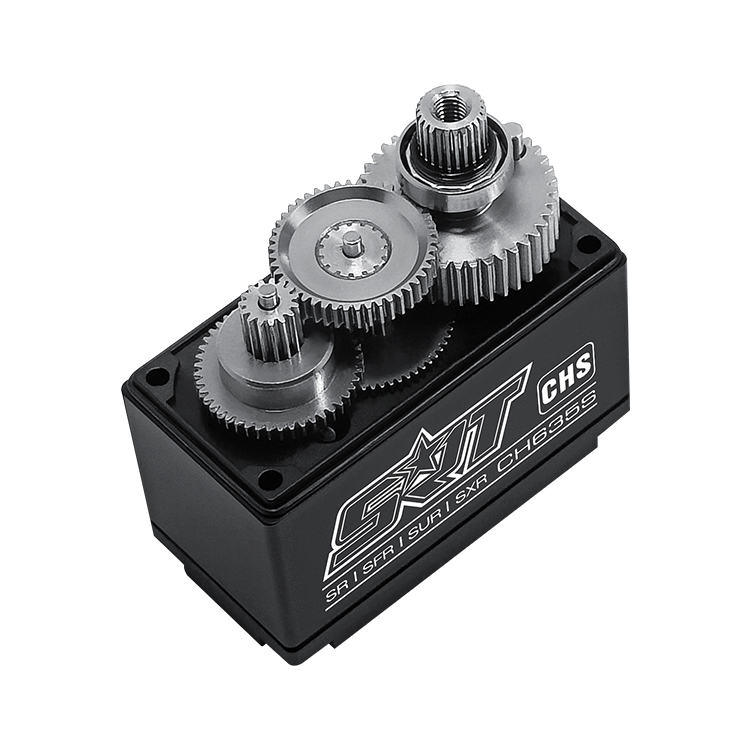

Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.15 sec/60 degrees at no load
operating speed (8.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive
dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
