KEY FEATURES
& Superior Holding Torque
& Incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& Programmable High torque Brushless servo
& Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
& 25T output shaft
& 2 μsec Dead Band
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) | Weight (g) | |||
| Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | ||||||
| T6S | 0.092 | 39.0/541.6 | 0.090 | 48.0/666.6 | 0.085 | 58.0/805.5 | Steel | Brushless | all-metal | 40.7*20.5*39.0 | 83.0 |
Application :
1/10 Crawler
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.092 sec/60 degrees at no load
operating speed (7.4v): 0.090 sec/60 degrees at no load
operating speed (8.4v): 0.085 sec/60 degrees at no load
stall torque (6.0v): 39.0kg.cm (541.6 oz/in)
stall torque (7.4v): 48.0kg.cm (666.6 oz/in)
stall torque (8.4v): 58.0kg.cm (805.5 oz/in)
potentiometer drive: direct drive

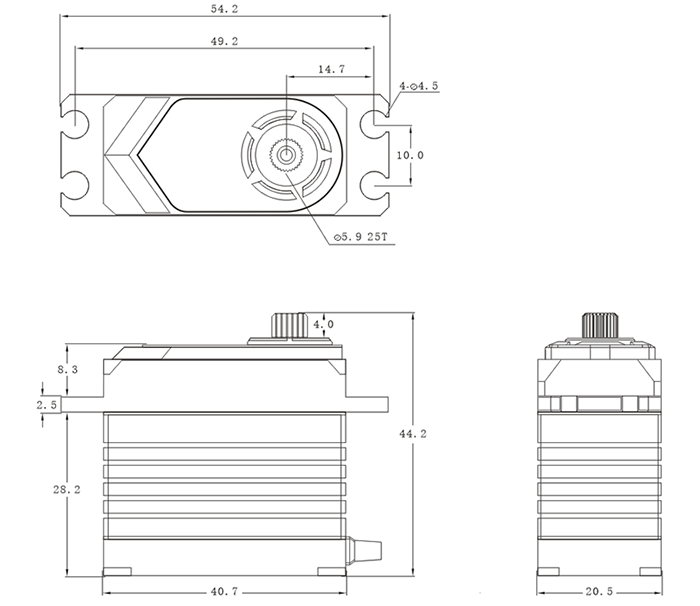

dimensions: 40.7x20.5x39.0 mm /1.60x0.81x1.54 in
weight: 83.0g (2.93 oz)
connector wire length: jr 300 mm
SRT SERVO OVERVIEW
All SRT servos are available to be customized by OEM service if you need, please feel free to contact us.
