KEY FEATURES
& 4-Pole brushless motor with superior fast response
& Incredible efficiency and low power consumption
& Extremely sensitive response speed
& NMB dual main bearings
& Supporting SXR, SUR, UR, SR, SFR multiple ultra high speed modes
& 1-Year limited warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) | Weight (g) | |||
| Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | ||||||
| BHMX2 | 0.080 | 15.0/208.3 | 0.073 | 18.0/250.0 | 0.065 | 23.0/319.4 | TC4 Pure-Titanium & Steel | 4-Pole Brushless | Semi-metal | 41.0*20.0*23.3 | 42.0 |
Application :
1/10 Electric Touring
1/10 2WD Electric Buggy
1/10 Nitro Touring 1/8 Nitro Touring
PRODUCT SPECIFICATIONS
type: digital
bearing: dual
motor type: 4-Pole brushless
gear type: metal
gear material: TC4 pure-titanium & steel
control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc 6.0-8.4v
operating temperature range: -10 to +60 degree
operating speed (6.0v): 0.080 sec/60 degrees at no load
operating speed (7.4v): 0.073 sec/60 degrees at no load
operating speed (8.4v): 0.065 sec/60 degrees at no load
stall torque (6.0v): 15.0 kg/cm (208.3 oz/in)
stall torque (7.4v): 18.0 kg/cm (250.0 oz/in)
stall torque (8.4v): 23.0 kg/cm (319.4 oz/in)
potentiometer drive: direct drive

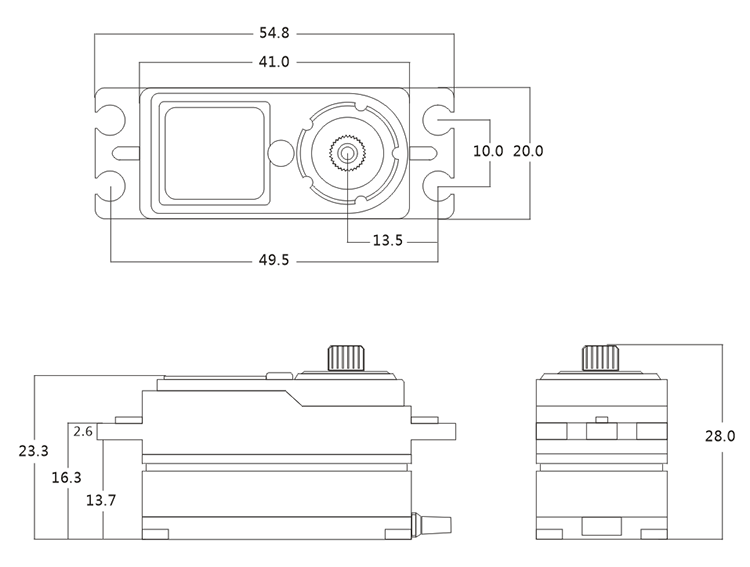

dimensions: 41.0x20.0x23.3 mm / 1.61x0.79x0.92 in
weight: 42.0 g (1.48 oz)
connector wire length: jr 180 mm (Specifically designed for nitro car steering)
connector wire length: jr 80 mm (Specifically designed for electric car)
SRT SERVO OVERVIEW
All SRT servos are available to be customized by OEM service if you need, please feel free to contact us.
