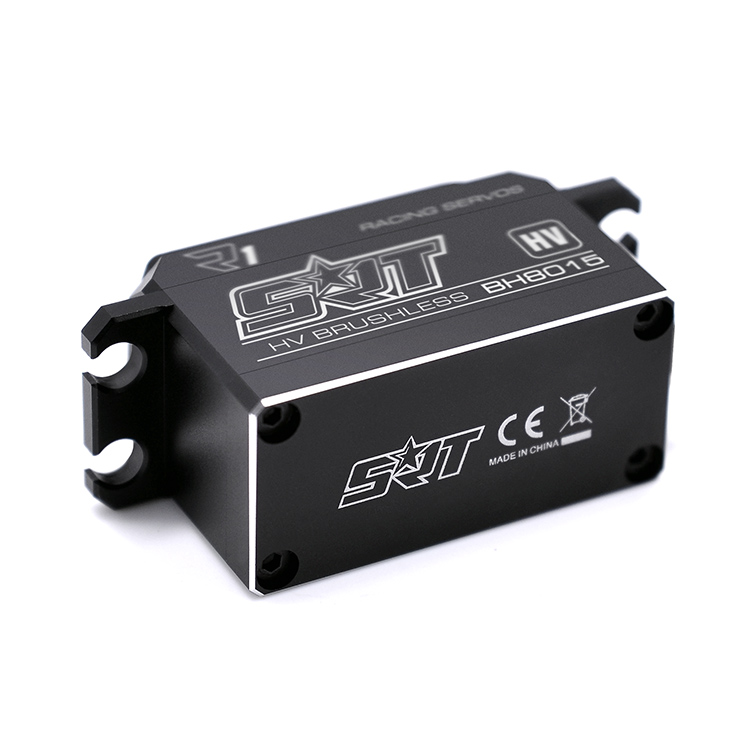

BH8015 1/10th Scale On-road HV Brushless Servo

SRP:$

< Roll over image to zoom in

KEY FEATURES

&  Unique Mechanic Design
&  incredible efficiency and low power consumption
&  Standard dimension make it perfect for vehicles that can benefit from a high quality servo
&  CNC Machined aluminum case for exceptional cooling
&  HD 4096 Resolution
&  2 μsec Dead Band
&  Superior Holding Torque
&  1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
BH8015 0.065 10.0/138.8 0.055 13.0/180.5 0.050 15.0/208.3 Titanium & Alu Brushless  CNC 41.0*20.0*26.4 52.0

Application :
1/10 Electric/ Car         1/10 Nitro/ Car            Off-road
 On-road



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.065 sec/60 degrees at no load
operating speed (7.4v): 0.055 sec/60 degrees at no load
operating speed (8.4v): 0.050 sec/60 degrees at no load
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm



SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.
