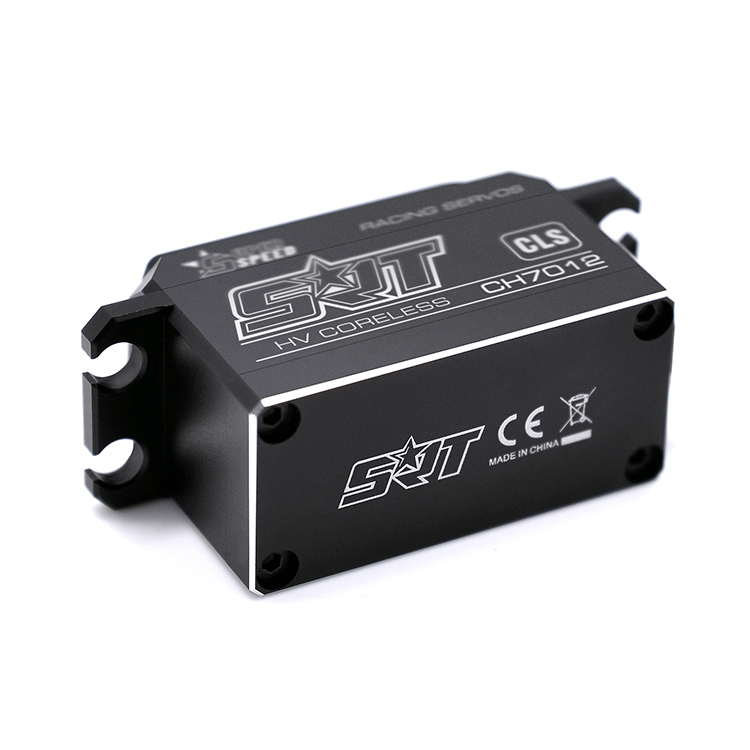

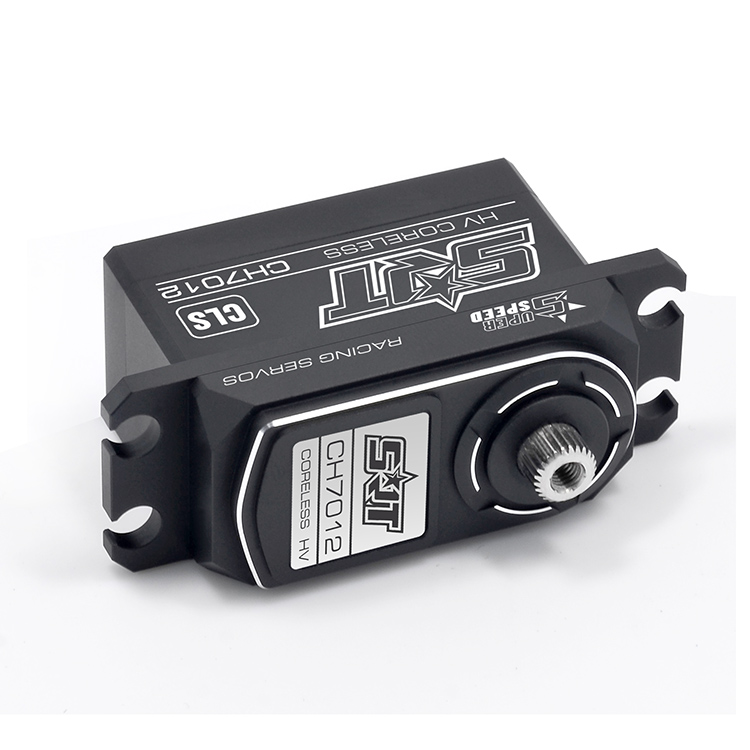

SRT CH7012 1/10Scale On-road HV Servo

SRP:$

< Roll over image to zoom in

KEY FEATURES

& Ideal for 1/10 on road scale applications,  as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& Titanium & Alu gears for precision and durability
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& HD 4096 Resolution
& 2 μsec Dead Band
& Superior Holding Torque
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
CH7012 0.07 9.0/124.9 0.06 11.0/152.8 0.057 12.0/166.6 Titanium & Alu Coreless  CNC 41.0*20.0*26.4 52.0

Application :
1/10 Electric/ Car         1/10 Nitro/ Car                2 4WD / Off-road
 On-road



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
operating speed (8.4v): 0.057 sec/60 degrees at no load
stall torque (6.0v): 9.0kg.cm (124.9 oz/in)
stall torque (7.4v): 11.0kg.cm (152.8 oz/in)
stall torque (8.4v): 12.0kg.cm (166.6 oz/in)
potentiometer drive: direct drive

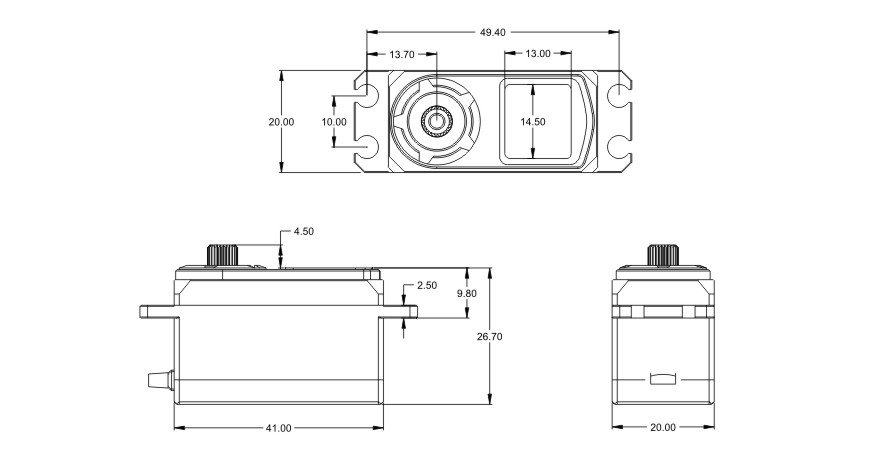

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm



SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.
