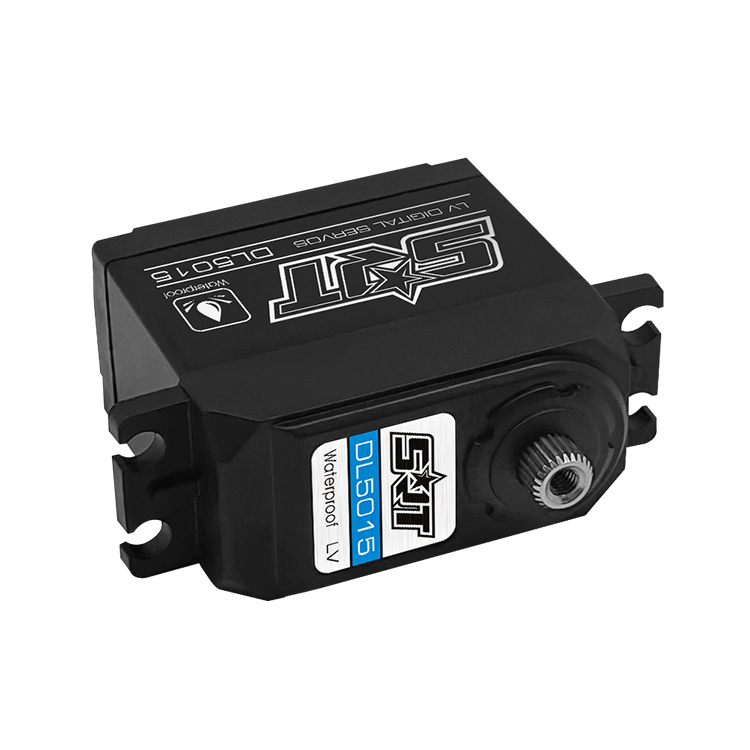

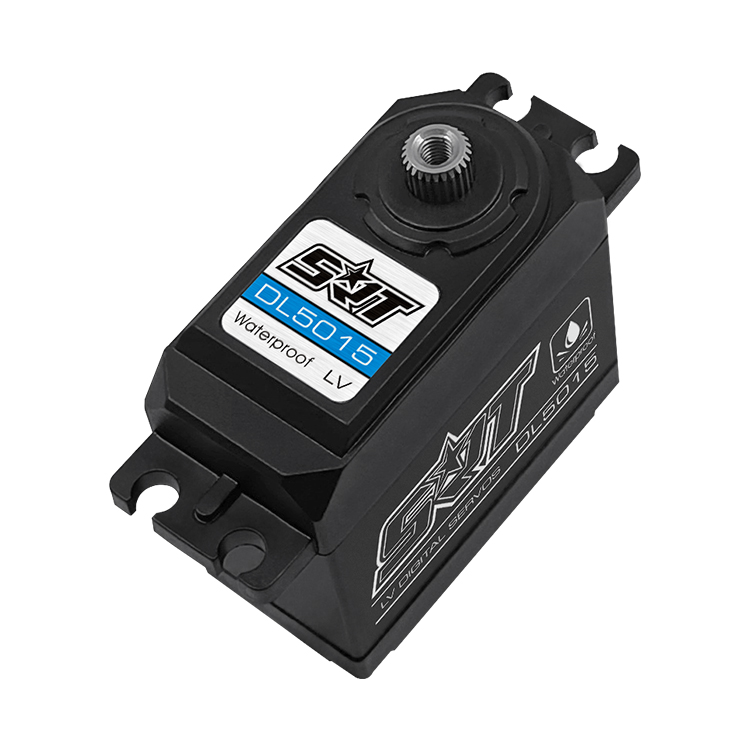

SRT DL5015 LV Digital Waterproof Servo

SRP:$

< Roll over image to zoom in

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications
& Intermediate aluminum case
& NMB dual main bearings
& Superior waterproof
& 25T output shaft
& 1-Year Limited Warranty

Item no 4.8V 6.0V 7.4V Gear Motor Case Dimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
DL5015  0.15 12.0/166.6 0.13 15.0/208.3 N/A N/A Titanium & Alu DC Semi-metal 40.7*20.5*39.5 65.0

Application :
1/10 Electric/ Car         1/10 Nitro/ Car                1/8 / Off-road
1/10  / Off-road            Electric/ BOAT



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC

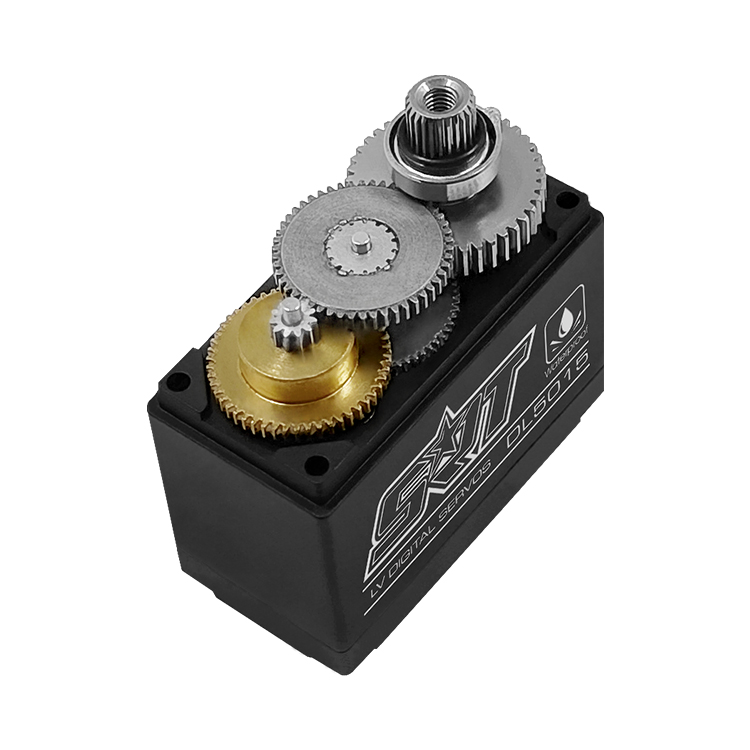

Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.15 sec/60 degrees at no load
operating speed (6.0v): 0.13 sec/60 degrees at no load
stall torque (4.8v): 12.0kg.cm (166.6 oz/in)
stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive

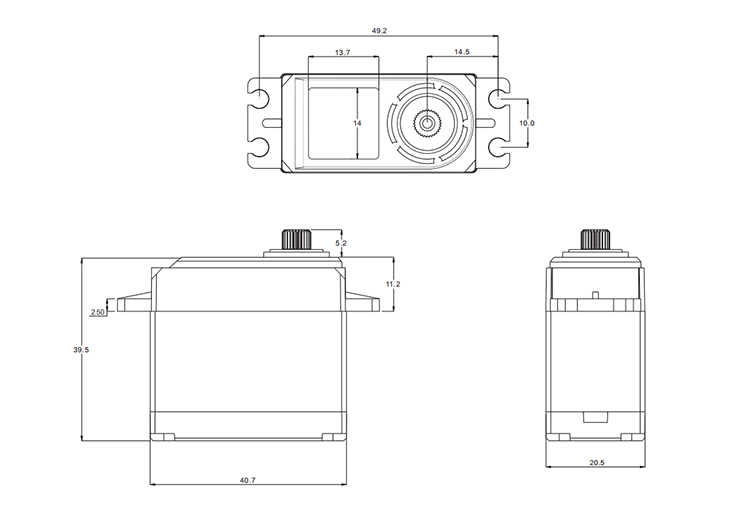

dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 65.0g (2.29 oz)
connector wire length: jr 250 mm


SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.
