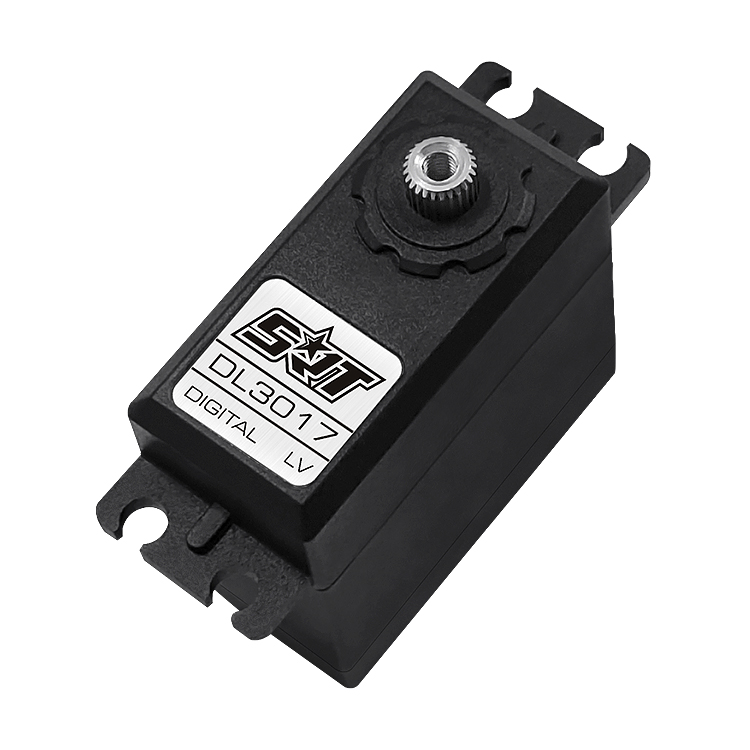

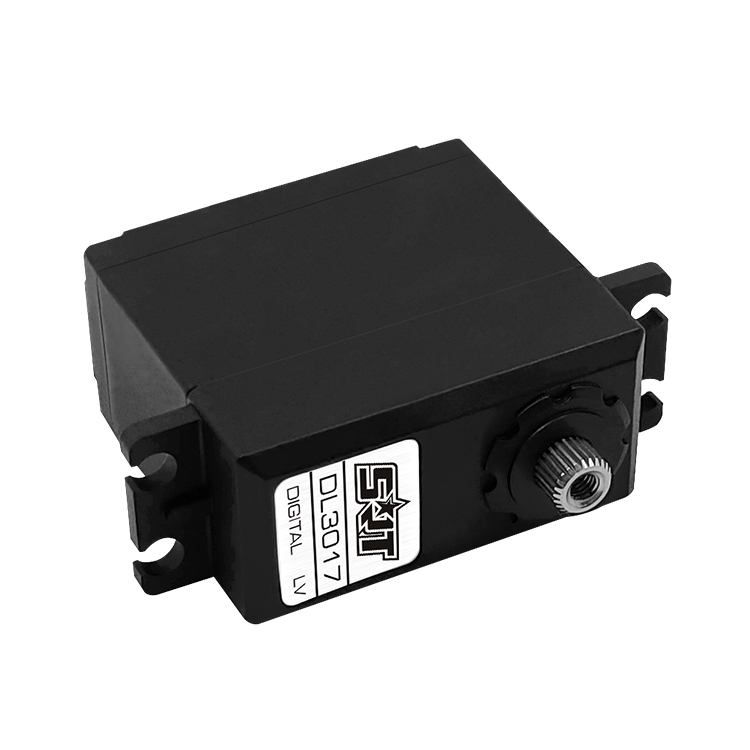

DL3017 LV Digital Servo

SRP:$

< Roll over image to zoom in

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& 2 μsec Dead Band
& 1-Year Limited Warranty

Item no 4.8V 6.0V 7.4V Gear Motor Case Dimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
DL30170.1715.5/215.30.1517.0/236.1N/AN/ACopper & AluminumDCplastic40.7*20.5*39.556.0


Application :
DL3017  LV Digital Servo1/8 Electric/ Car         DL3017  LV Digital Servo1/8 Nitro/ Car               DL3017  LV Digital Servo 1/10/8  / Off-road
DL3017  LV Digital Servo 1/8 Off-road             DL3017  LV Digital Servo1/10/8  / Off-road        DL3017  LV Digital Servo 1/10/8  Off-road
DL3017  LV Digital Servo Air plane                    DL3017  LV Digital Servo Robot



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC

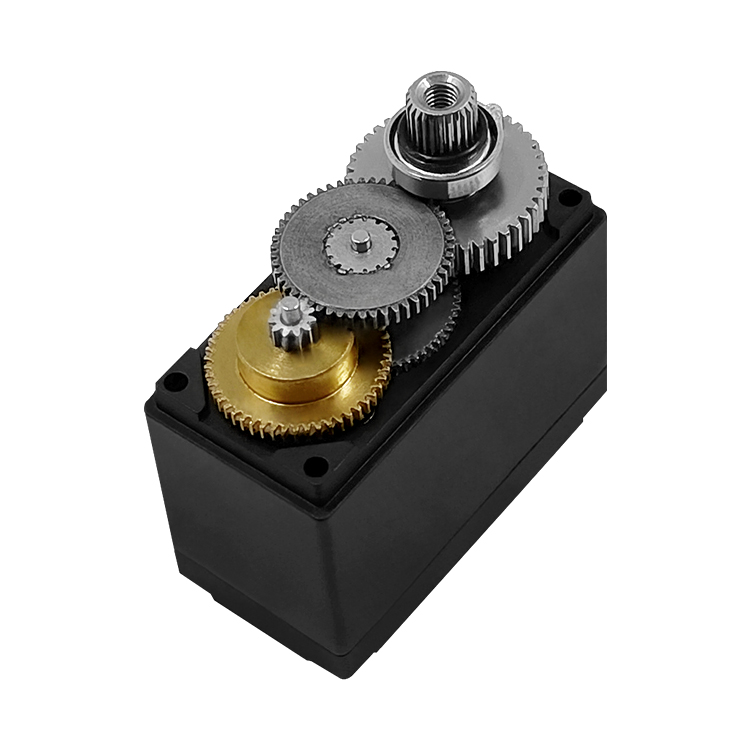

Gear Type: Metal
Gear Material: Copper & Aluminum
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.17 sec/60 degrees at no load
operating speed (6.0v): 0.15 sec/60 degrees at no load
stall torque (4.8v): 15.5kg.cm (215.3 oz/in)
stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 56.0g (1.98 oz)
connector wire length: jr 290 mm


3020 3017 新壳尺寸-.png


SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.
