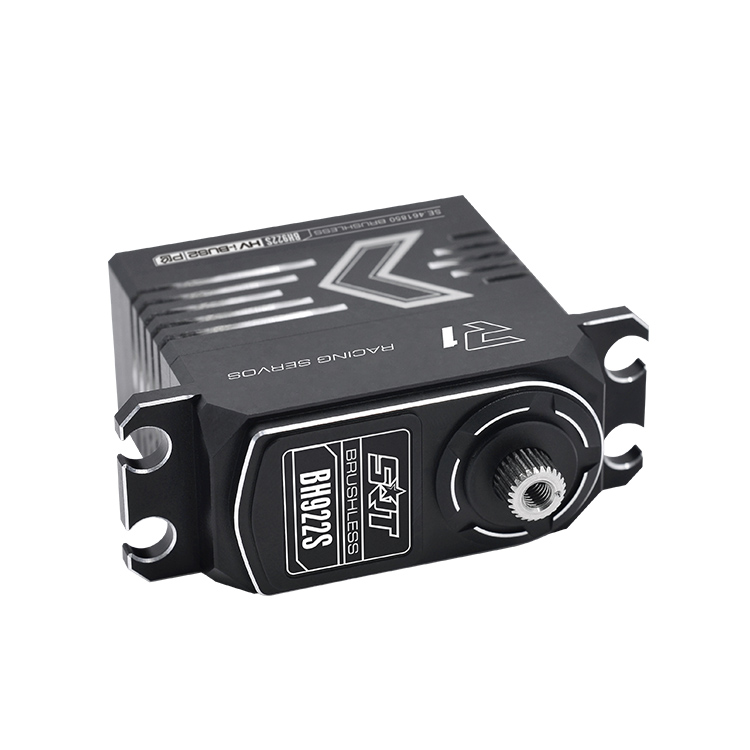

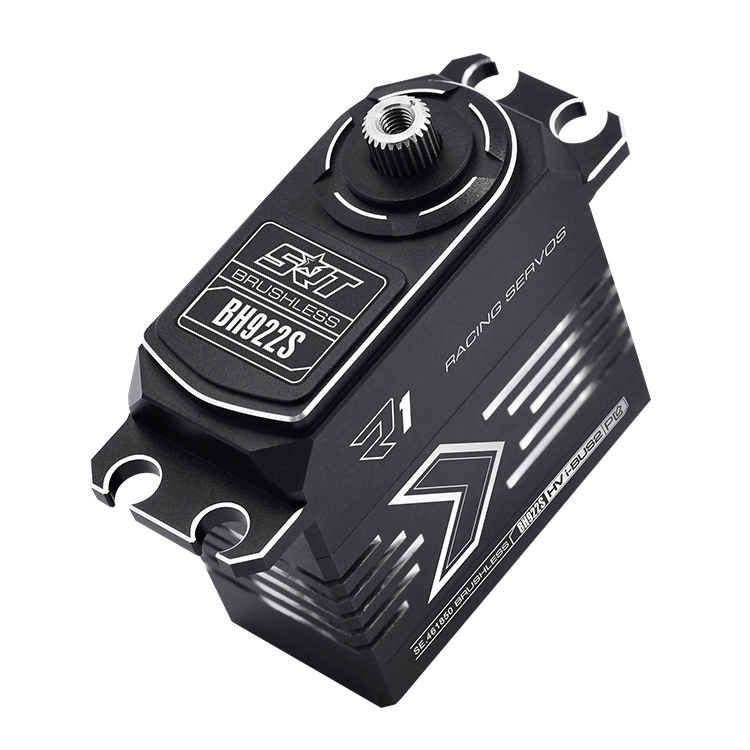

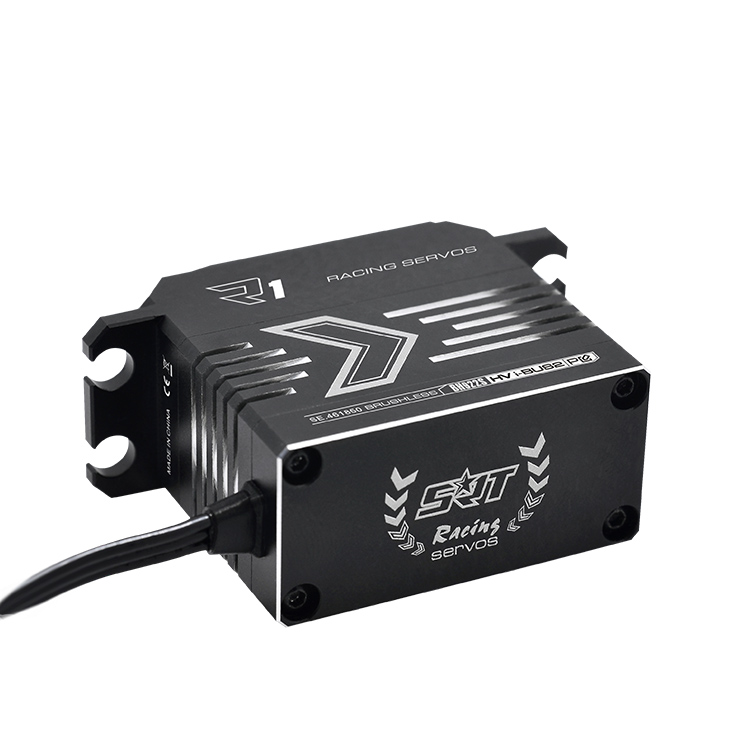

SRT BH922S HV Brushless Servo

SRP:$

< Roll over image to zoom in

KEY FEATURES

& Superior Holding Speed
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& NMB dual main bearings
& SSR mode compatible
& 25T output shaft
& HD 4096 Resolution
& 2 μsec Dead Band
& 1-Year Limited Warranty


Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
BH922S 0.08 17.0/236.1 0.06 20.0/277.7 0.055 22.0/305.5 Titanium & Steel Brushless all-metal 40.0*20.0*38.0 80.0


Application :
SRT BH922S HV Brushless Servo1/10 2WD Electric Buggy  SRT BH922S HV Brushless Servo1/10 4WD Electric Buggy
1/8 Nitro GP&GT   fefdc762857b1d8aa7c859d403d01bbd_6c0906d56660893b4c065ce33e5dca63.jpg 1/8 Electric GP

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.08 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
operating speed (8.4v): 0.055 sec/60 degrees at no load
stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive

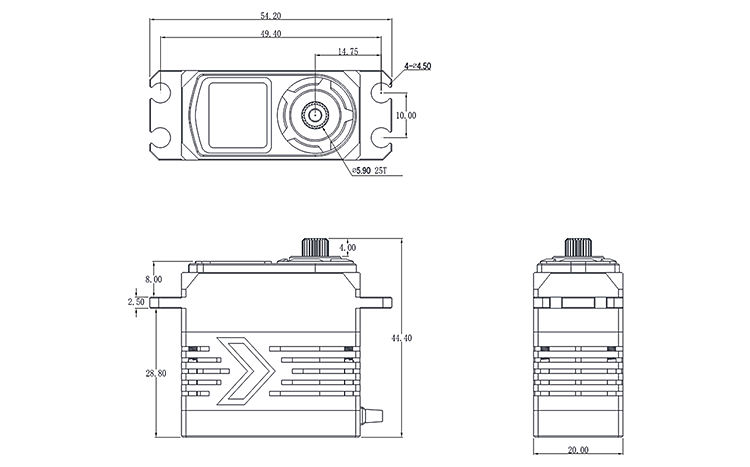

dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 80.0g (2.82 oz)
connector wire length: jr 300 mm


SRT BH922S HV Brushless Servo

SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.
