KEY FEATURES
& Ideal for 1/10 drift car applications
& incredible efficiency and low power consumption
& Titanium & Steel gears for precision and durability
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& SSR mode compatible
& 2 μsec Dead Band
& Superior Holding Torque
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case |
Dimension (mm) |
Weight (g) | |||
|
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in | ||||||
| D1S | 0.10 | 14.0/194.4 | 0.095 | 16.5/229.1 | 0.08 | 18.5/256.9 | Titanium & Steel | Coreless | all-metal | 41.0*20.0*27.3 | 58.0 |
Application :
1/10 Electric/ Car
1/10 drift/ Car
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.095 sec/60 degrees at no load
operating speed (8.4v): 0.08 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 16.5kg.cm (229.1 oz/in)
stall torque (8.4v): 18.5kg.cm (256.9 oz/in)
potentiometer drive: direct drive

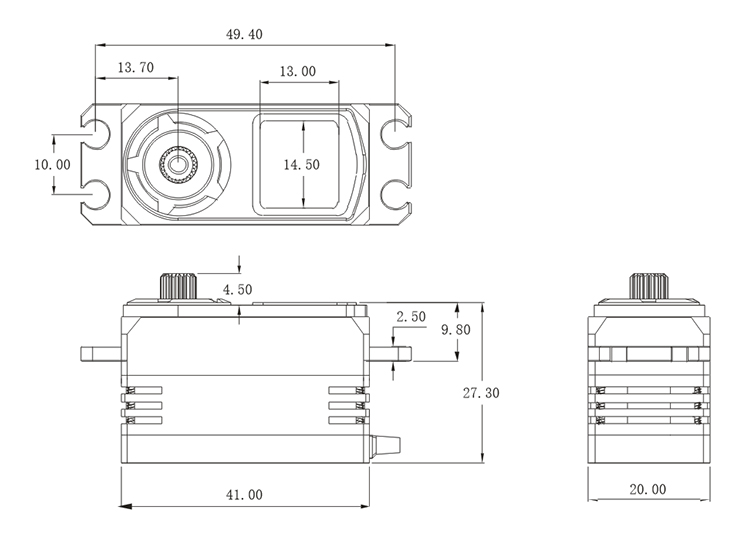

dimensions: 41.0x20.0x27.3 mm /1.61x0.79x1.07 in
weight: 58.0g (2.05 oz)
connector wire length: jr 80 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
