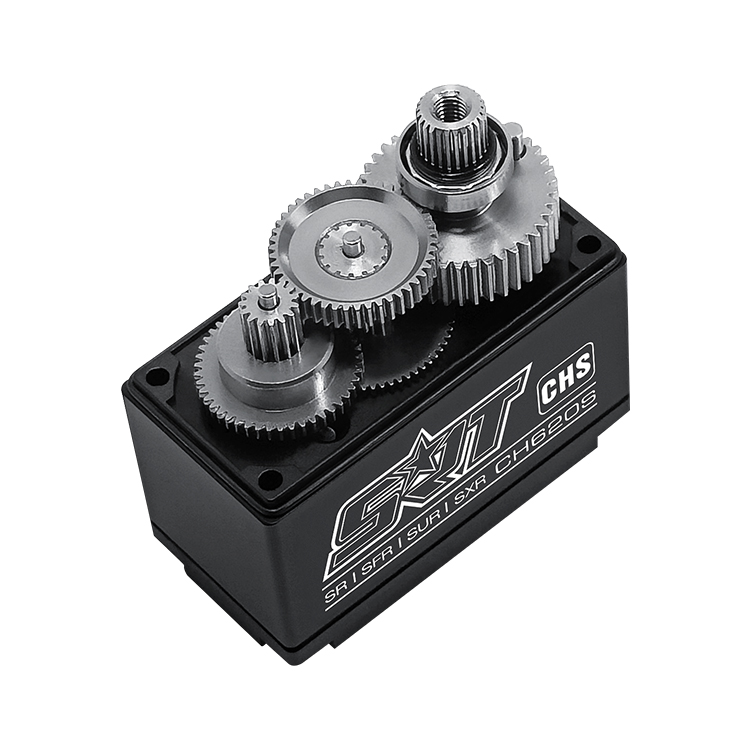

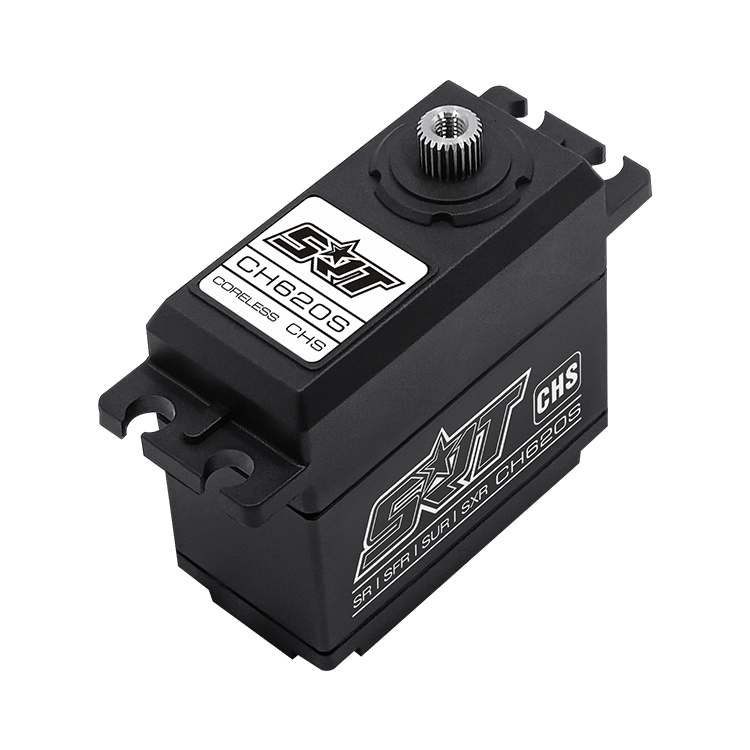

SRT CH620S 1/8Scale Car HV CORELESS Servo

SRP:$

< Roll over image to zoom in

KEY FEATURES

& incredible efficiency and low power consumption

& Supporting SR, SFR, SUR, SXR multiple ultra high speed modes

& 2 μsec Dead Band
& 1-Year Limited Warranty

Item no6.0V7.4V8.4VGearMotorCaseDimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
CH620S0.1214.0/194.40.1018.0/250.00.0920.0/277.7Titanium & AluCoreless Semi-metal41.3*20.5*38.369.0


Application :
SRT CH6020  1/8Scale Car HV CORELESS Servo1/10 4WD Electric Buggy      SRT CH6020  1/8Scale Car HV CORELESS Servo1/10 Nitro Touring
SRT CH6020  1/8Scale Car HV CORELESS Servo
1/8 Nitro GP&GT                  64caea0b44f92a50656a3b8aaf8106ed.jpg1/8 Electric GP



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
operating speed (8.4v): 0.09 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive

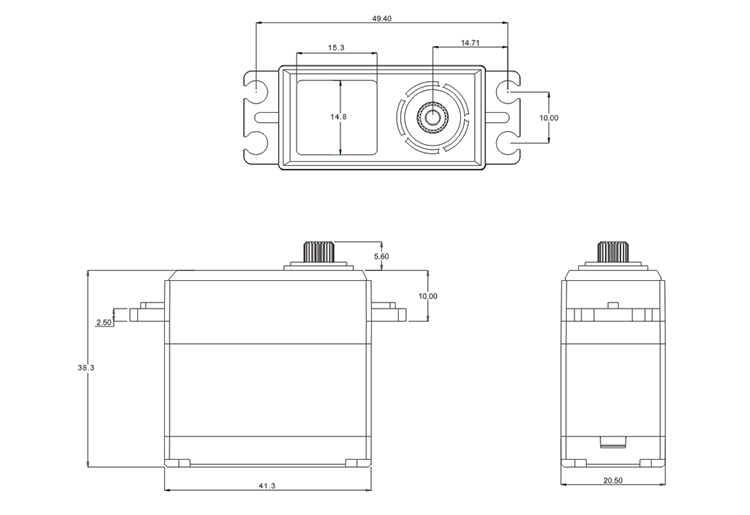

dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm


CL6030 尺寸.png


SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.
