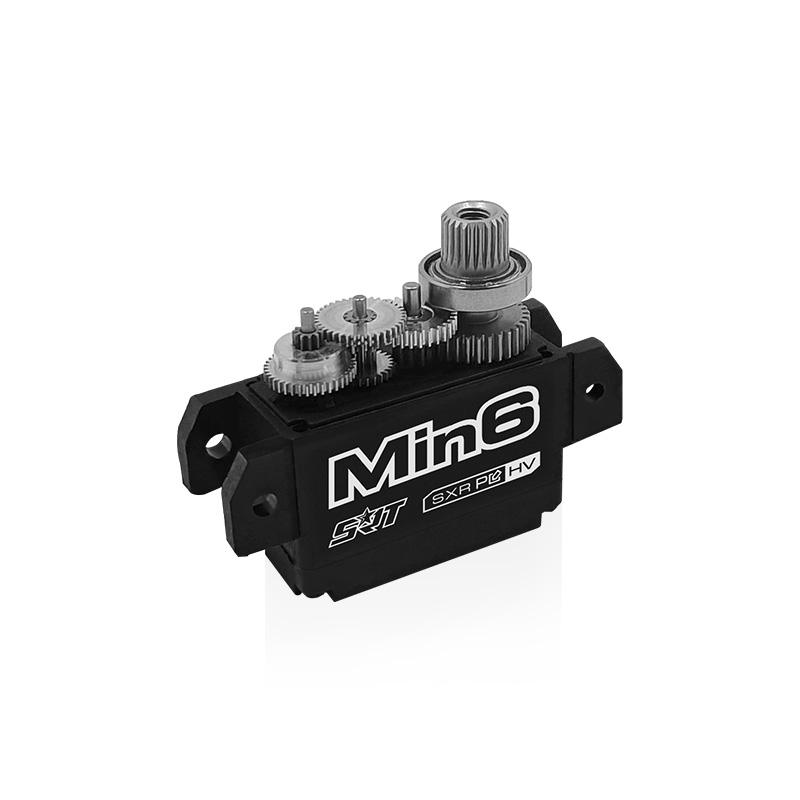

KEY FEATURES
& Special 1/12 pancar servo
& Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
& Incredible efficiency and low power consumption
& 2 μsec Dead Band
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) | Weight (g) | |||
| Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | ||||||
| Min6 | 0.08 | 6.8/94.4 | 0.07 | 8.0/111.1 | 0.062 | 9.0/125.0 | 7075 Aluminum | Coreless | plastic | 27.2*12.1*28.2 | 18.0 |
Application :
1/12 Pancar
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: 7075 Aluminum
control system: pulse width control
working frequence: 1520μs / 333hz
operating voltage: dc4.8-8.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.100 sec/60 degrees at no load
operating speed (6.0v): 0.080 sec/60 degrees at no load
operating speed (7.4v): 0.070 sec/60 degrees at no load
operating speed (8.4v): 0.062 sec/60 degrees at no load
stall torque (4.8v): 5.0kg.cm (69.4 oz/in)
stall torque (6.0v): 6.8kg.cm (94.4 oz/in)
stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
potentiometer drive: direct drive

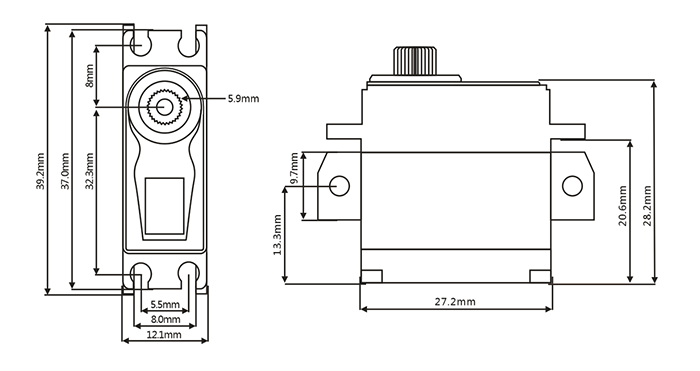

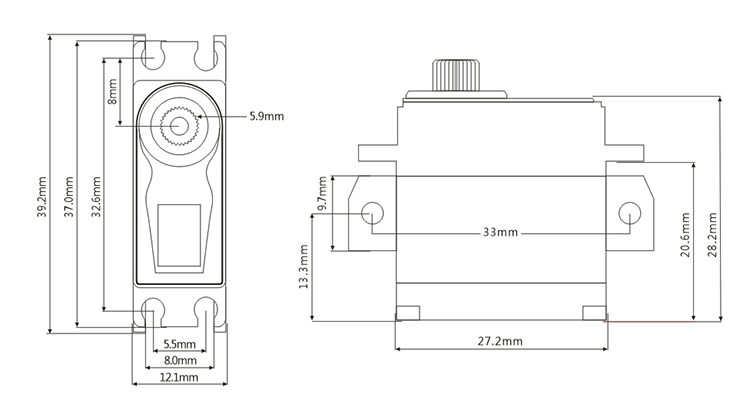

dimensions: 27.2x12.1x28.2 mm /1.07x0.48x1.11 in
weight: 18.0g (0.63 oz)
connector wire length: jr 170 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
